Canned mushroom proeccssing plant,pea canning line

Canned mushroom pea bean corn processing line

Genyond produces equipment for the production line of canned mushroom, pea, baby corn, beans (sward beans, soybeans, green beans, chickpeas beans, red beans, mung beans, green peas).

According to the plant area, it can provide the equipment from cleaning, precooking, cooling, grading, trimming, canning, exhaust and sterilization to the subsequent packaging line. At the same time, it can also provide you with the whole plant planning.

inquiry

Description



Name
Model specifications
Process
1. Bubble cleaning machine
Bubble(dry bean 0.5T--1T/H)
2. Precooker
With cooling 5min (85℃-90℃) L=10m W=1100mm
3. Soak
With lifting
4. Washing machine
Empty can
5. Lifting conveyor
moveing to tank of filling machine
6. Filling Machine
use measuring working way
7. Sealing Machine
Sealing Can(500g)
8.Filled cans washing and drying machine
Clean the residue on the can
9. Loading Can
By magnetic
10.high pressure sterilization machine
Sterilize cans
11. Unloading Can
By magnetic
12. Drying
By air
13. Labeling Machine
Labeling Machine
14. Print Machine
Print date(VIDEOJET)
15.Carton erector packer sealer
Open carton Load the product into cartons Seal carton
16.Palletizer
Stack products together
17. automatic wrapping machine
Wrap the packaged products together

Empty cans De-palletizer

Descriptions
Empty cans de-palletizer is mainly composed of lifting mechanism, moving mechanism, magnetic suction mechanism,conveyor and electrical controlling system. The working way adopts magnetic suction and moving type. It can match with magnetic lifting conveying system, can transport product in the air and can transport product among different height of floor.
Name
Empty cans depalltizer
Capacity
2-4 layers/min
Clamp way
Magnetic absorb
Air consumption
300L/min
Power
6KW

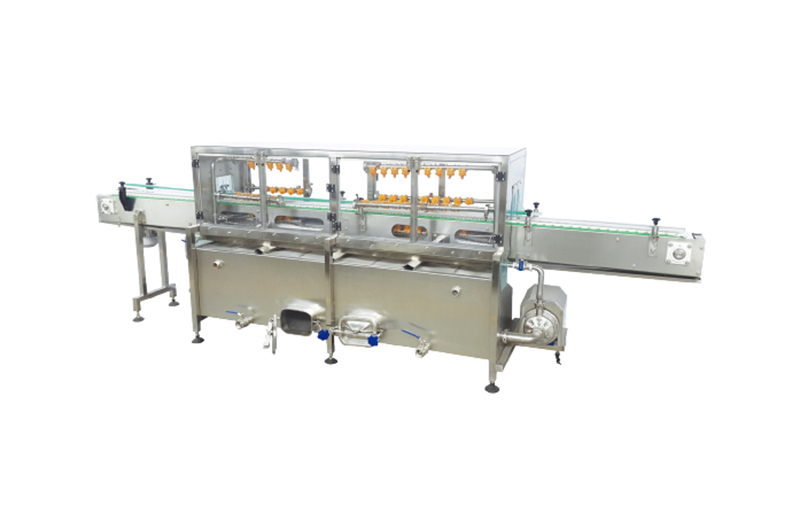

Empty cans washing machine
Descriptions:The machine is used for tinplate can,ring-pull can continued cleaning,adopt steam heating way,temperature is adjustable,it adopt high pressure standard nozzle. It has good cleaning efficiency,reasonable structure,stable work performance,high efficiency,it is ideal equipment of canned food beverage production line.
Parameter
Name
Empty Cans Washing Machine
Capacity
50-300cans/min
Washing Section
1-2 Section washing
can diameter
40-150mm
Power
1.5KW

Diced Food Measuring Cup Filling Machine

Descriptions:
The machine is mainly used for vegetables, fruits, corn, red beans, mung beans, kidney beans, chickpeas, small diced meat and so on. adapt measuring cup measurement method, the filling range can be adjusted. the whole machine is made of stainless steel and equipped with Siemens PLC, schneider electric components, the machine runs stably and reliably.
Name
Measuring Cup Filling Machine
Filling Heads
12/24
Capacity
3000-12000 cans/H
Feeding tray size
700*150 mm/1100*120 mm
Power
1.5KW

Liquid filling machine

It is applied to the filling of brine, soup, sauce, etc. after the filling of solids is completed.
Name
Liquid filling machine
Filling heads
2/4/6/8/10/12
capacity
600-5000 cans/H
Filling volume
10 ml- 5000 ml
Air consumption
120 L/min-300 L/min
Power
1-3 KW

Cans Sealing Machine

Automatic vacuum sealing equipment, especially suitable for tin cans, aluminum cans and other bottle types. It has vacuum pumping function and can also add nitrogen.
Name
Cans Sealing Machine
Capacity
30-100 cans/min
Can size
D:50-400 mm H: 50-350 mm
Power
1-3 KW
Filled cans washing machine
Applied to clean and dry outside surface of all kinds of canned fruit bottle, canned meat bottle, sauce bottle and all kinds of drinks bottle.


Cages Loading/unloading machine
This machine adopts the method of magnetic suction of cans, which is mainly used in the cage loading and unloading work before and after sterilization of canned food.


Sterilization Machine Retort
Applied to all kinds of cans of drinks, tin cans of drink, canned meat, canned
vegetables etc sterilization
