dried apple processing machine,apple chips drying machine

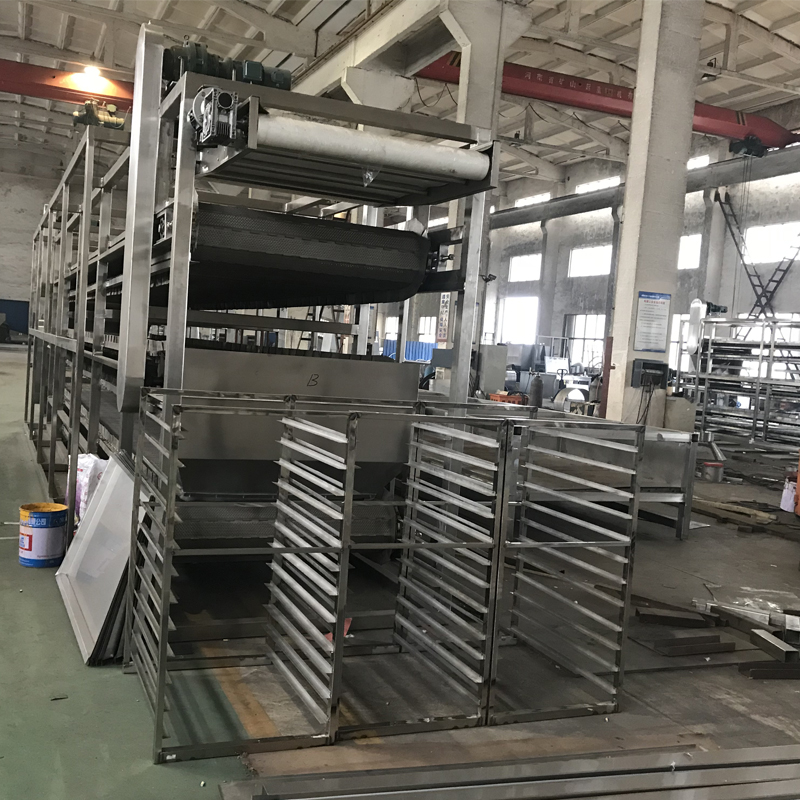

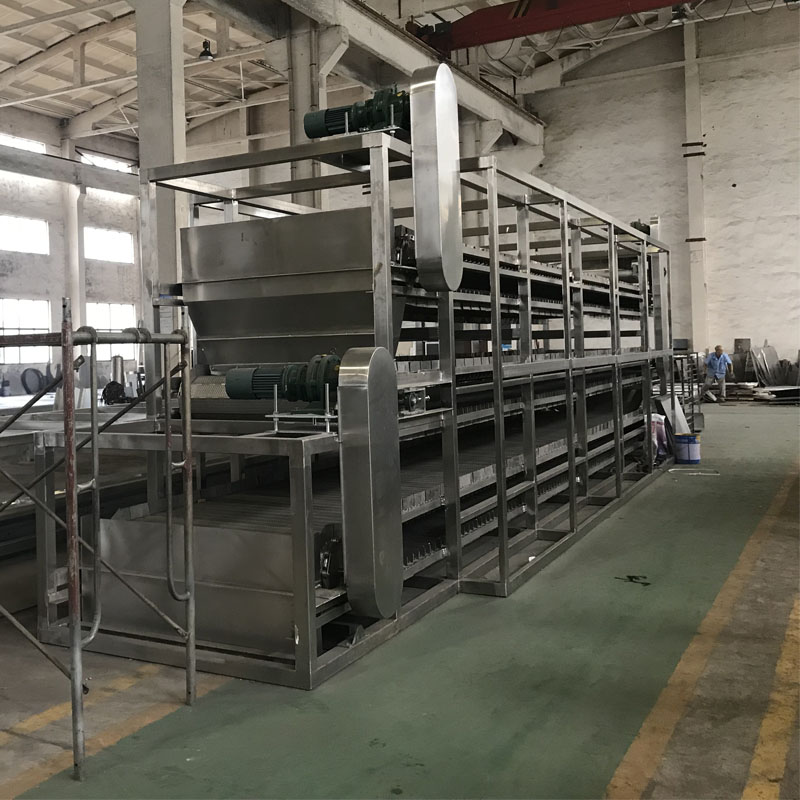

Continuous belt Conveyor Tunnel drying machine

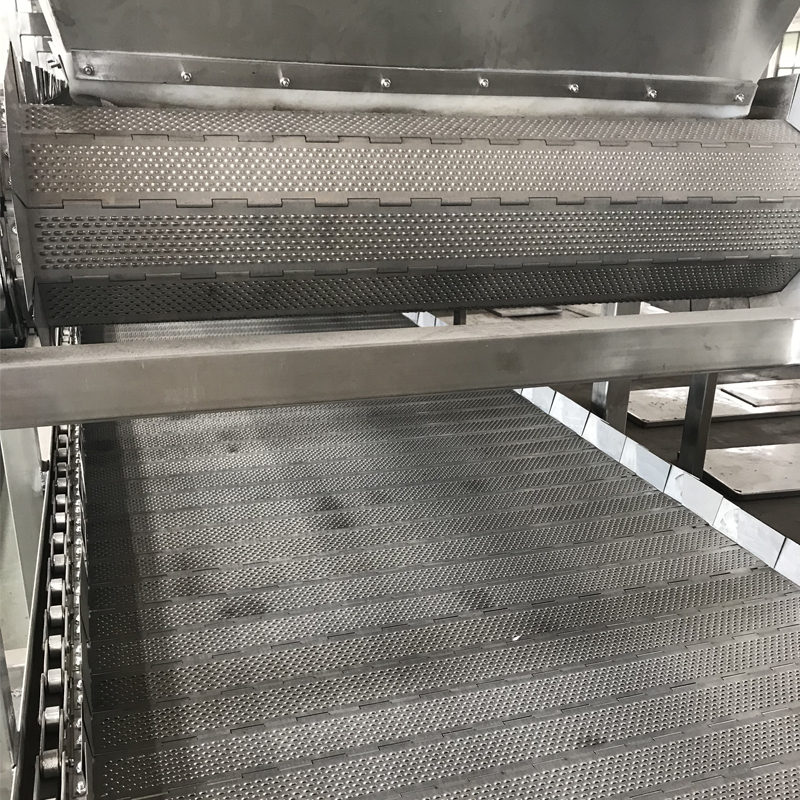

The raw material after washed should be distributed on the conveyer belt through suitable mechanism such as star distributor, swing conveyor, crusher or granulator, the conveyer passes through the channel including of one or several heating unit. Each heating unit is equipped with air heater and circle system. Each channel has one or several damp discharge systems. When the conveyer passes through it, hot air will pass through the raw material from up to down or from down to up. In this way the raw material can be dried uniformly

inquiry

Description

Application Scope

De-watering vegetable, chilli, Cassava , particle feed, gourmet powder, shredded coconut stuffing, organic color, compound rubber, medicine product, medicine material,

small wooden product, plastic product, aging and solidification for the electronic component and device

Model Item	DW-1.2-8	DW-1.2-10	DW-1.6-8	DW-1.6-10	DW-2-8	DW-2-10	DW-2-20
Drying Unit(Qty)	4	5	4	5	4	5	10
Mesh Belt(m)	1.2		1.6		2
Drying Length(m)	8	10	8	10	8	10	20
Material Thickness（mm）	10-80
Drying Temperature (oC)	50-140
Steam Pressure(MPa)	0.2-0.8
Steam Consumption (kg/h)	120-300	150-375	150-400	180-500	180-500	225-600	450-1200
Drying Time (h)	0.2-1.2	1.25-1.5	0.2-1.2	0.25-1.5	0.2-1.2	0.25-1.5	0.5-3
Evaporation Capacity (kg/h2o/h)	60-160	80-200	85-220	100-260	100-260	120-300	240-600
Total Power (kw)	11.4	13.6	14.6	18.7	19.7	24.5	51
Total Weight (kg)	4500	5600	5300	6400	6200	7500	14000
