machine à sécher les armoires

description

Model	CT- C-0	CT- C- IA	CT-C-I	CT-C-II	CT- C-III	CT- C-IV
Drying capacity (kg)	25	50	100	200	300	400
Heating power (kw)	9	12	15	30	45	60
Steam heating area(m²)	10	15	20	40	80	100
Blowing rate (m3/h)	3400	3400	3450	6900	10350	13800
Drying tray (pcs)	16	24	48	96	144	192
Length × width × height (m)	1.4x1.2x1.6	1.4x1.2x2.0	2.3x1.2x2.0	2.3x2.2x2.0	2.3x3.22x2.0	4.45x2.2x2.0
Trolley	1	1	2	4	6	8

Product Description

Main features

1. For drying or heating slurry, paste, cake, powder, granule or sliced materials in various kinds of industries

2. Drying temperature: RT-300 degree C (adjustable)

3. Tray quantity: 12-192 trays

4. GMP design is available

5. Heat source can be steam, electricity, hot water, hot oil or gas/oil/coal/boimass fired hot air generator

Working principle

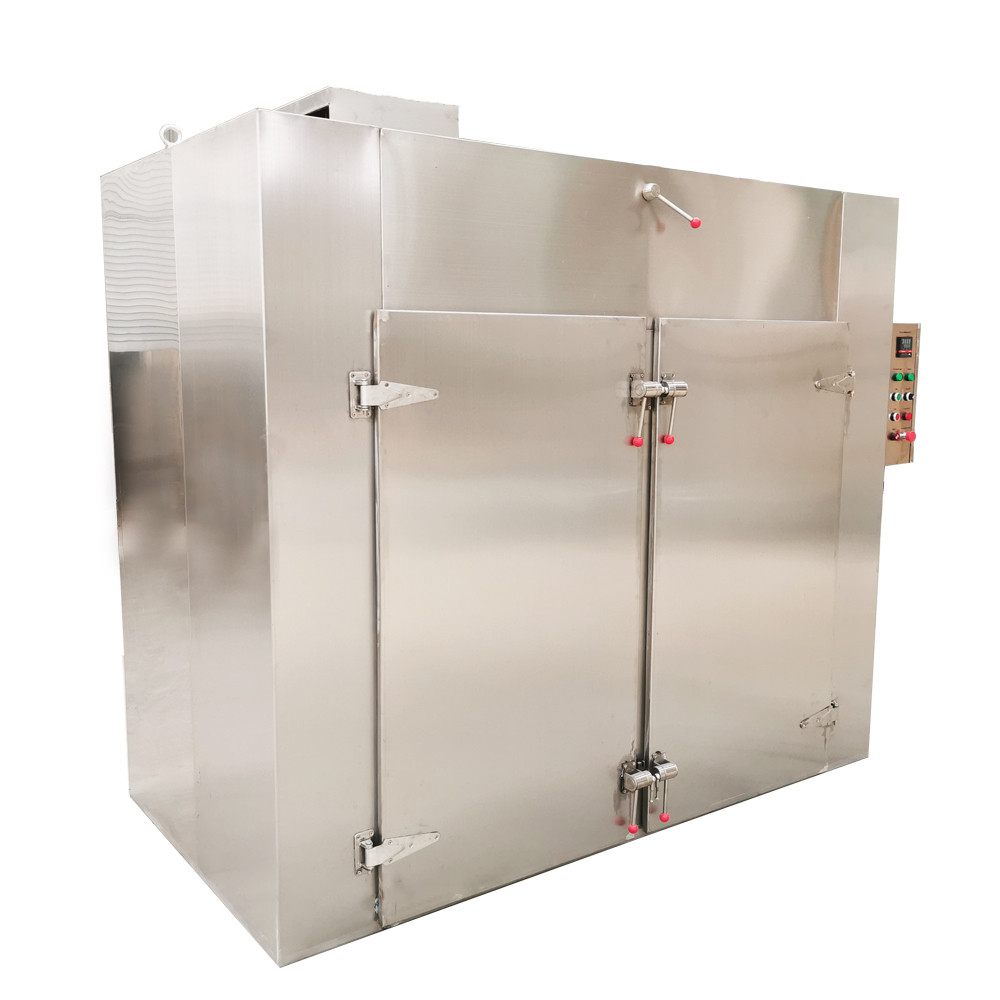

CT-C series hot air circulation tray dryer is the most often used convection chamber dryer. Inside the drying chamber, trays loaded with wet material are placed on top of each other in trolleys.

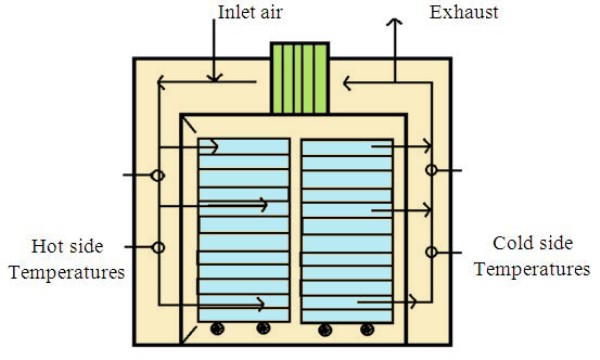

In drying process, fresh cold air is sucked into the drying chamber by the circulation fan and flows through the steam radiator or electrical heating tubes installed at the top to get required temperature. With the help of air distributor, the hot air evenly flows through each layer of trays for heat transfer and carries way the evaporated moisture. Most of the damp air flows back to the circulation fan for next drying circulation while part of the damp air is exhausted for energy saving. The drying process is batch type. When the drying is finished, open the chamber door and pull out the trolleys for unload the dried product.

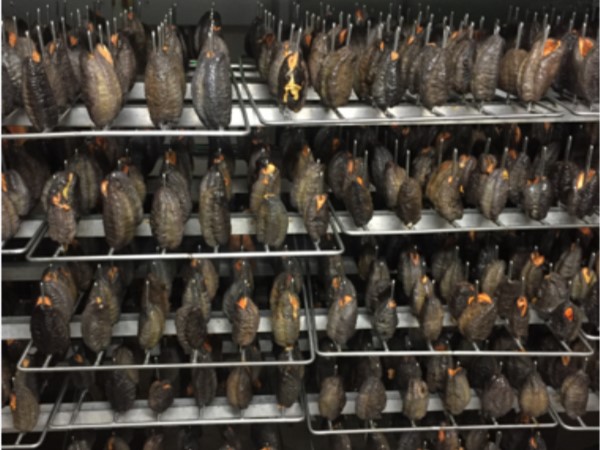

CT-C series hot air circulation tray dryer can be used for drying or heating almost all kinds of wet materials, such as slurry, paste, cake, powder, granule or sliced materials in almost all kinds of industries.

CT-C-O (24 Trays)

CT-C-I (48 Trays)

CT-C-III (144 trays)

Technical advantages

1. Robust drying chamber: The drying chamber is made by SUS304 or SUS316L steel plate, fully welded and mirror polished. The design is robust, simple and compact which requires minimum maintenance.

2. Uniform drying: Due to the specially designed air distributor, the hot air flow in each layer of trays is very uniform. The temperature difference inside the drying chamber is less than ±2 ℃.

3. Energy saving: Most of the hot air circulates inside the well insulated drying chamber and only part of it is exhausted via the exhaust valve. The amount of exhaust air is adjustable according to different drying conditions.

4. Flexibilité de la source de chaleur : la source de chaleur peut être de la vapeur, de l'eau chaude, de l'électricité, de l'huile thermique, du pétrole/gaz/charbon/générateur d'air chaud à biomasse pour s'adapter aux différentes conditions de travail.

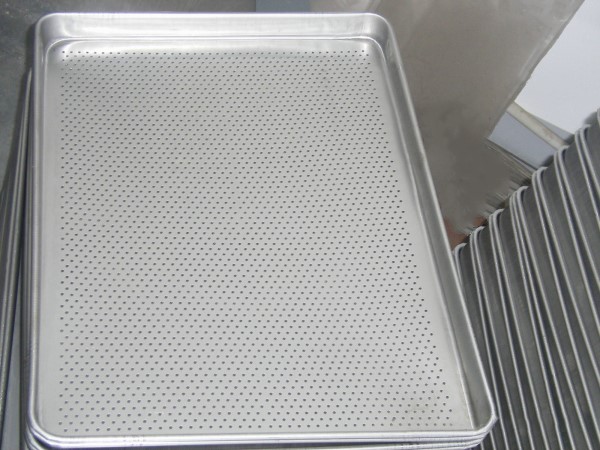

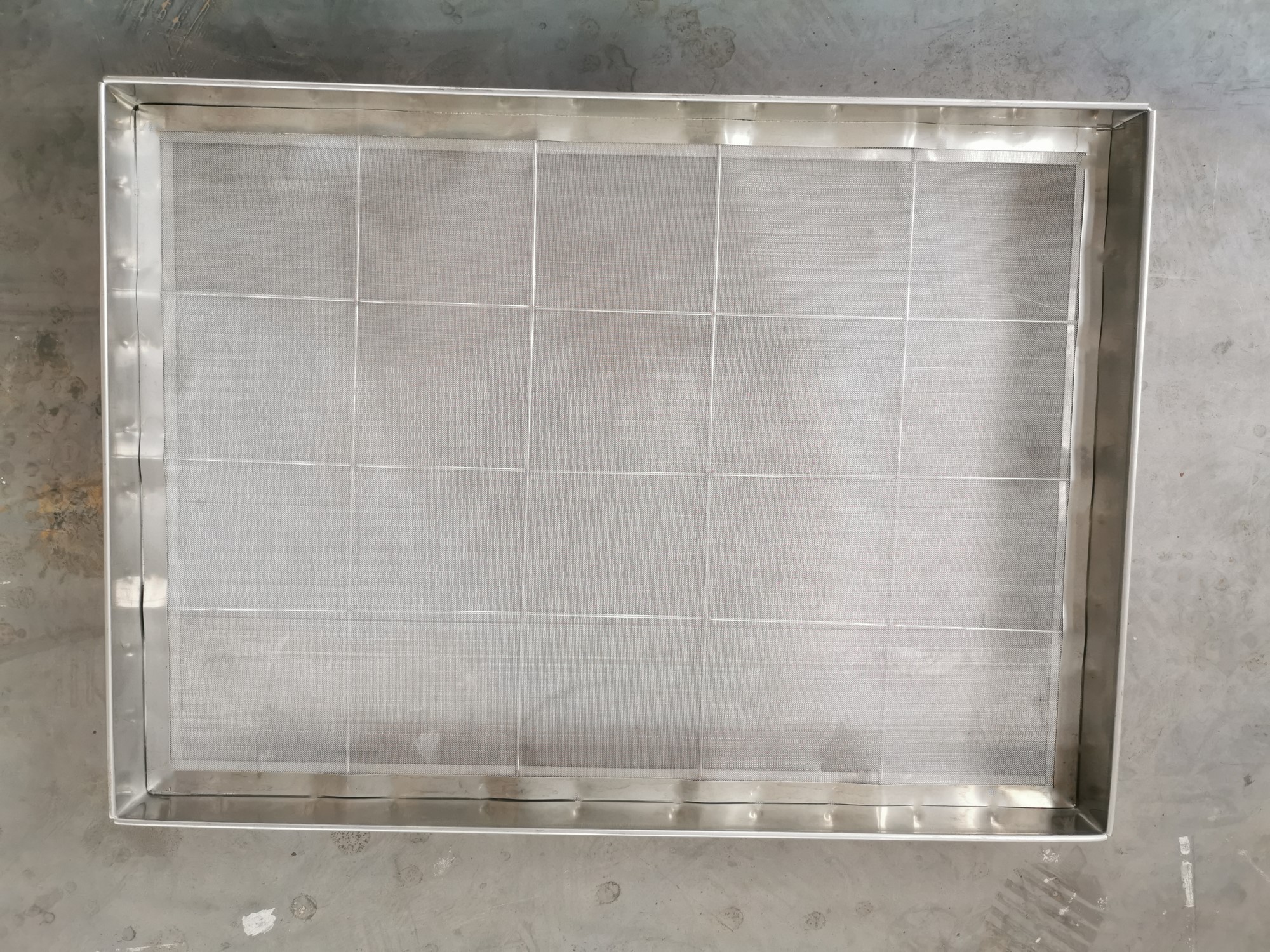

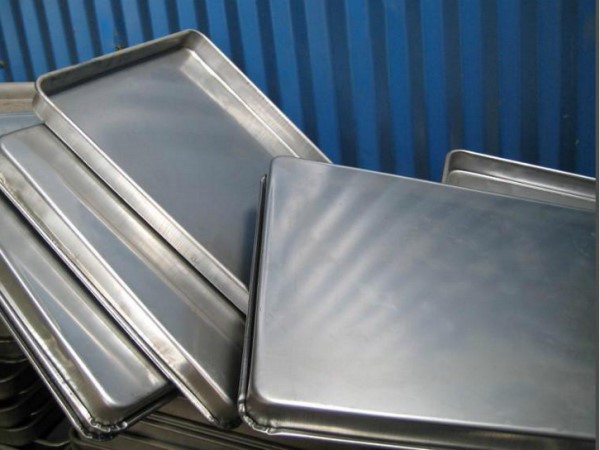

5. Flexibilité de séchage : Taille standard (640x460x45mm) mais différents types de plateaux sont disponibles pour différents types de matériaux humides.

6. Fonctionnement pratique : L'armoire de commande est installée sur la chambre de séchage qui peut contrôler et régler avec précision la température de séchage et le débit d'air chaud.

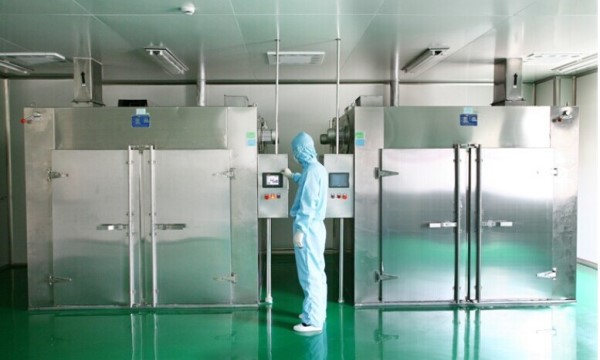

7. Conception GMP : La chambre de séchage est entièrement soudée, polie miroir sans coins morts pour un nettoyage conforme à la norme GMP.

Images détaillées
