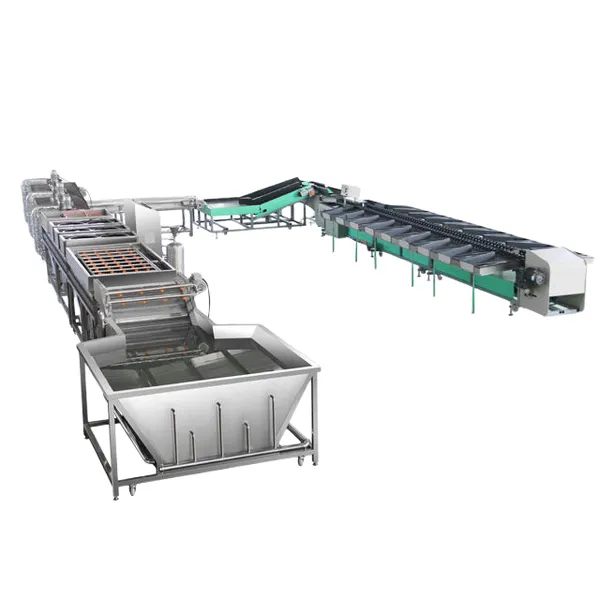

Fruit waxing garding machine

This line is suitable for potatoes, oranges, avocados, apples, peaches and other materials. It consists of washing machine,conveying and manual sorting machine, conveyor elevator, waxing and drying machine, and grading machine.  For grading, there are size garding and weight grading for options.

This production line can be designed and arranged according to required weight range and factory layout.

Description




Fruit and vegetable washing waxing drying grading line is suitable for round or cylinder-shaped materials like potato, orange, lemon,onion and so on.

This processing line consists of air bubble washing machine, conveying machine, lifting machine and grading machine. This line can be fully custom-made depending on required capacity

and customers’ specifications.


Model
Name
Function
QXD
Air bubble soaking and washing tank
Fruit and Vegetable Washing Machine
MQX
Brush roller high-pressure spraying washing machine
Fruit and Vegetable Washing Machine
TBQT
Brush Roller Vegetable Washing  Machine
Root Vegetable Peeling Washing Machine
FG
Air-drying and waxing machine
Fruit and Vegetable Drying Waxing Machine
FJ
Size grading or electric weight grading machine
Fruit and Vegetable Grading Machine


Technical data cusromized according to customer's demand

Model

GRC-FJ1

GRC-FJ5

GRC-FJ10

Grade level

                                                4-7 levels

Voltage

                                                220/380V

Power

1.5+0.75kw

1.5+0.75+3kw

1.5+0.75+5kw

Capacity

1-3t/hour

5-8t/hour

10-12t/hour



 Process Flow Diagram As Below:

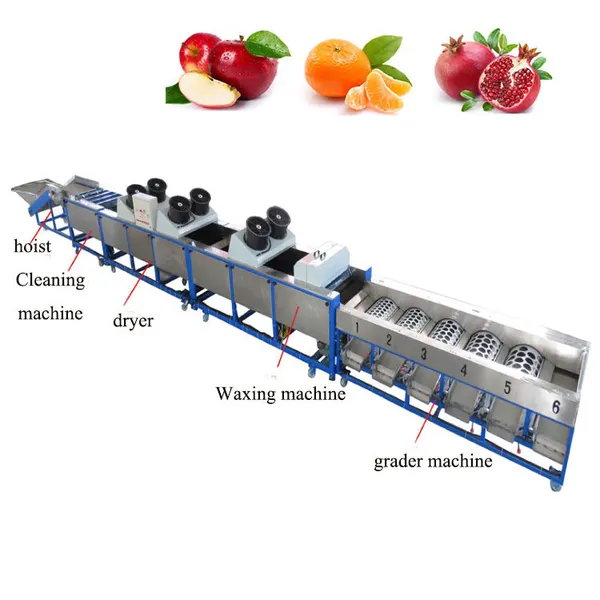

  Loader → Washing tank → Plastic roller → Shower → Brushes roller →Waxing part  Drying → part Grading  Packing  part


Part 1.Washing and waxing part

1.The machine could to clean the fruit very good,and waxing the fruit,after the processing the fruit look very fresh.

2. It's widely used for grading apples, pears, persimmons, pears, potatoes, onions, oriental melon and so on.


Part 2.  Electric weight Grading or size grading:

a.This electronic fruit grader is efficient and precise. It's widely used for grading apples, pears, persimmons,onions,lemons,mangos,pomelo,jujube,and other round fruits.

b.It is controlled by PLC, and is highly intelligent. Weighing, logic calculation, counting are integrated.

c.Tetrafluoroethylene is covered onto the working surface to keep the machine running stably with low noise and increase the shelf life of the machine. The operation and maintenance of the machien is easy and laborsaving.
