Small fruit juice belt pressing machine

It is widely used in solid and liquid separation process of the half end product in VC project, alcohol project and brewing, starch, and feedstuff, and industrial polluted water and salted dished salt removing projects. It works automatically and continuously. The aerocyst controls inflating bags, revision, And adding pressure. The cleaning water is filtered by an angle net sterilizer and can be recirculated.

Description

The belt juicer is used to use two looped mesh belt to clamp the fruit paste and bypass the multistage diameter, and rely on the tension of the mesh belt to make the outer mesh belt around the press roll to produce pressure on the fruit paste sandwiched between the two mesh belts and squeeze out the juice. In order to overcome the shortcoming of low pressing force produced only by the tension of the mesh belt, a linear pressure roller is often added to the end of the roller and the pressure roller is combined.

The fruit paste sandwiched in the middle of the two mesh belt is subjected to double pressure from the outer mesh belt and the pressure roller when the squeezing roller meshes with the pressure roller, which is more than the pressure only produced by the mesh tension. The strength of the press is several times higher. The juicer technology of the Genyond Juicer fully embodies the characteristics of the combined press rolling and pressing, that is, the rolling press with pressure, the pressing force to win the wide adaptability, the high yield of the juice and the low water content of the fruit residue.genyond 500kg/h small belt type apple juice extractor

In addition to the press of apples and grapes, this type of juicer can also be used to process materials with higher fiber content such as eucalyptus, apple pears and fresh ginger.

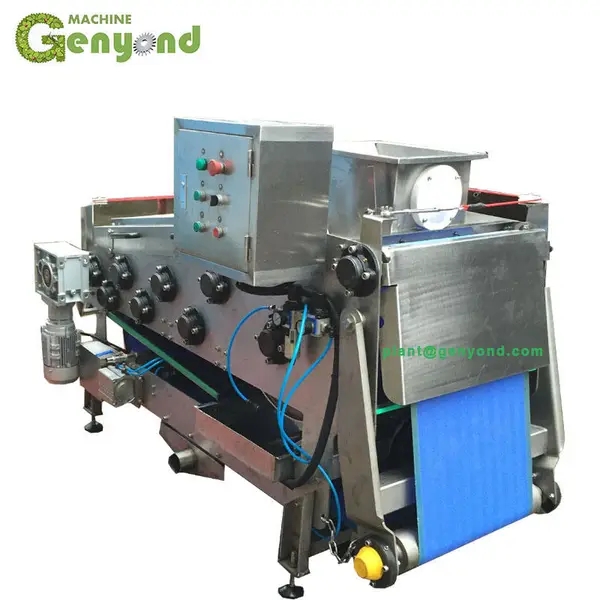

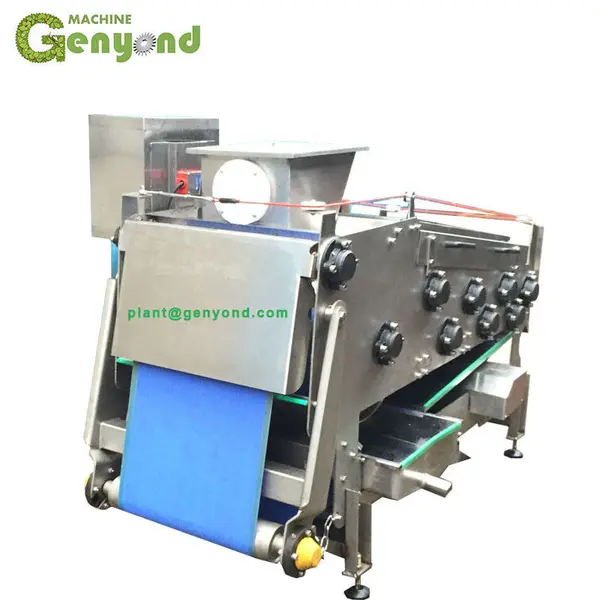

0.5-1T per hour Small belt pressing machine

Capacity (kg/h)	500kg per hour, 1000kg per hour
Material	Stainless steel SUS304
Juice Yield	75-83%
Application	Fruit, vegetables, apple, pear, etc.
Keywords	Genyond 500kg/h small belt type apple juice extractor


belt press 01.jpg

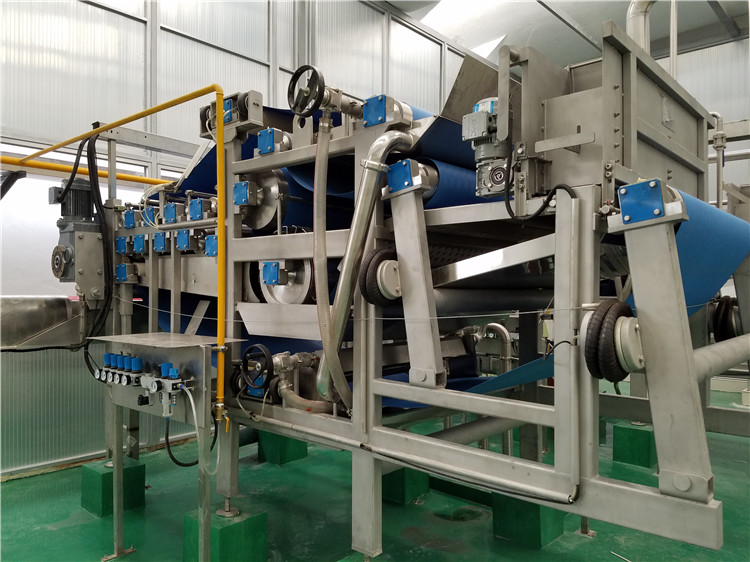

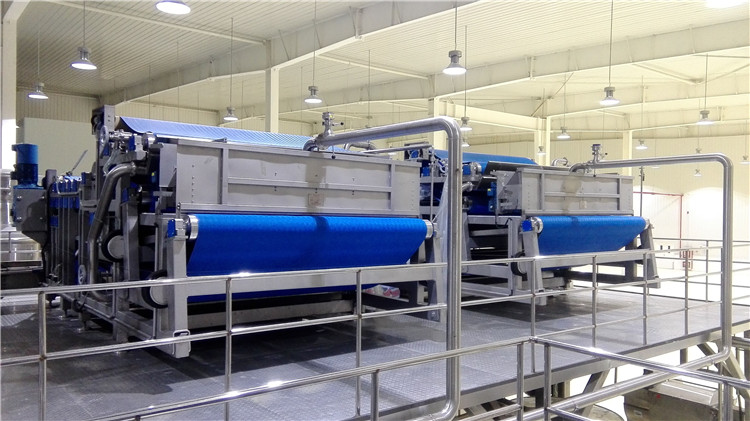

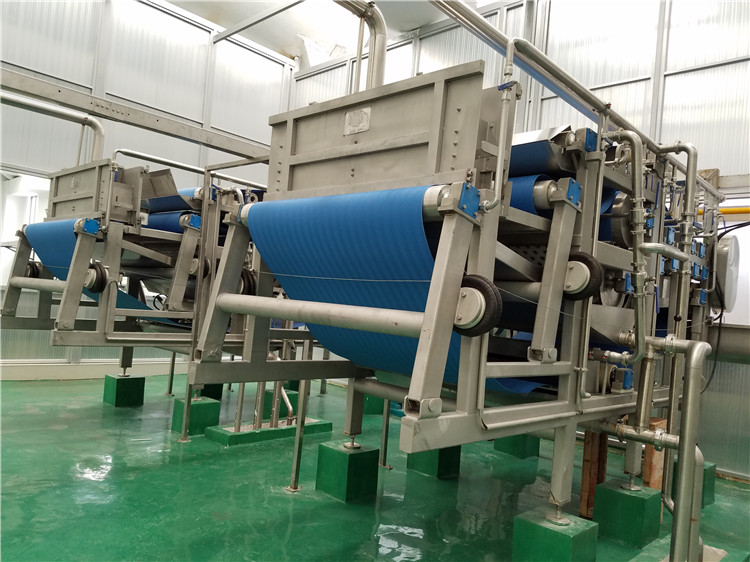

1-20T per hour industrial fruit juice belt pressing machine

Model	GYJ-3	GYJ-5	GYJ-10	GYJ-20
capacity (t/h)	1-3	3-5	5-10	10-20
Linear speed of filter belt（m/min）	5	5.7	7.95	6.3
Main transmion speed（r/min）	11	9.5	11	8.2
Central unit power(kw)	1.5	3	4	5.5
Cleaning pump power(kw)	75	11	15	30
Cleaning pump flow(m³/h)	10	14	16	32
Cleaning pump lift(m)	32	94	189	378
Reflowing pump power(kw)	2.2	5.5	5.5	5.5
Reflowing pump flow(m³/h)	12.5	25	25	25
Reflowing pump lift(m)	20	32	32	32
Material roller power(kw)		0.37	0.37	0.37
Consumption of compressed air (m³/h)	1
Pressure of compressed air (MPa)	0.6
Height of material inlet(mm)	1160	1840	2045	1920
Size of juicing belt( mm)	7780×800	11170×1200	14300×1750	16800×2500
Dimension(mm)	3100×1475×1820	3940×2085×2430	5000×2780×2560	5420×3430×2420
